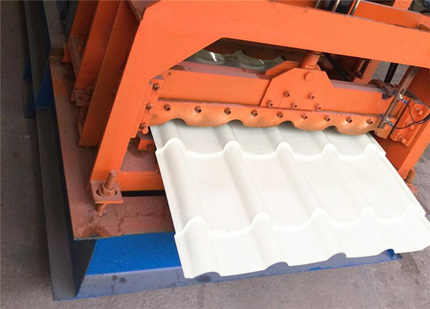

优势--950琉璃瓦成型机
• 高强度，经久耐用
此设备机架采用国标300/350H型钢，各组件、标准件一律采用国标产品，绝无空心轴等省料现象。设备运行稳定、操作简单，能充分保障您的生产进度。
• 加工工序精细复杂

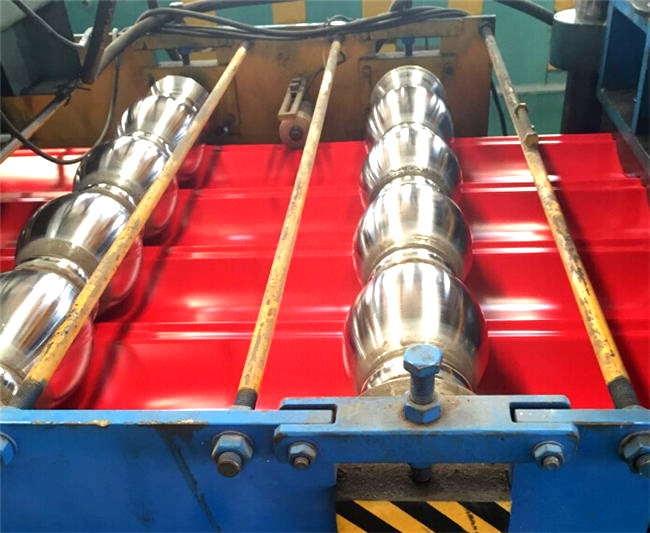

此设备压制辊轮经数控粗加工、淬火、二次精车、电镀等多步工序，精度高，跳动小，强度高，成型美观，无刮伤，无变形，充分保障您的产品质量。
• 交货快，售后积极
此设备交货期一般为30天，整机保修一年，终身维护。
 |
 |
规格--950琉璃瓦成型机
|
序号 |
主要组件 |
规格 |
备注 |
|
1 |
轴 |
调质45钢 |
约16道 |
|
2 |
辊轮 |
轴承钢 |
|
|
3 |
墙板 |
A3钢(18-20mm) |
|
|
4 |
传动 |
链条或齿轮箱 |
|
|
5 |
切断 |
液压剪切 |
|
|
6 |
电机功率 |
5.5KW |
|
|
7 |
控制系统 |
松下PLC，安川变频器 |
|
Main Technical Specification:
1.Material thickness: 0.3mm-0.8mm
2.Forming speed: 0-3m/min
3.Roll station:16 stations
4.Main power: 5.5kw
5.Hydraulic power: 7.5kw
6.Control system:PLC Panasonic
7.Drive: by chain
1. Single press model steel tile roll forming machine
1) Production Characteristic and use:

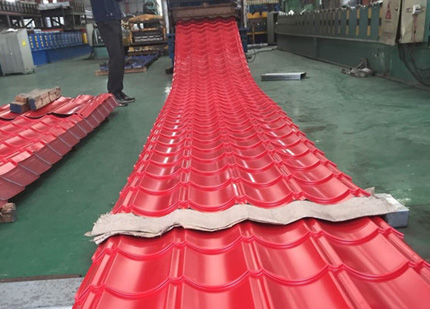

Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.
2) Main Technical Specification:
①thickness: 0.3-0.8mm
speed: 5-6m/min
roll station: 16 stations (depend on the profile)
main power: 4.4KW Servo motor
hydraulic power: 4KW
control system: PLC Panasonic
Drive: by chain
②thickness: 0.3-0.8mm
speed: 2-4m/min
roll station: 16 stations (depend on the profile)
main power: 5.5KW
hydraulic power: 4KW
control system: PLC Panasonic
Drive: by chain
